ESD Anti-Static Green Masking Tapes
Description
RoHS and REACH Compliant
Custom sizes are available upon request.
ESD Anti-Static Tapes are made from 1 mil thick polyester film with 1.5 mil of silicone adhesive. They are designed for high temperature masking of electronic devices that are sensitive to electrostatic charge. These tapes are tear resistant and removes without leaving any residue. They are packaged as 72 yard-long rolls on a 3 inch core with an ESD symbol at the tab of the roll. These ESD Safe Tapes are available in various widths of up to 20 inches.
Custom sizes are available upon request.
Application Ideas

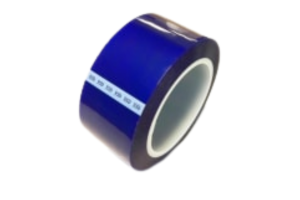

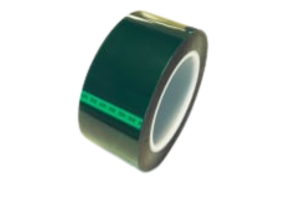

Part Number | ESDBPT and ESDGPT series |
---|---|
Color | Blue and Green |
Film Thickness | 1.0 mil |
Adhesive Thickness | 1.5 mil |
Total Thickness | 2.5 mil |
Material Type | Polyester with ESD Properties |
Tensile Strength | 25 lbs./in. |
---|---|
Resistivity | 5x10⁶ to 5x10⁸ |
Static Charge | < 150V - Removal from roll |
Dielectric Strength | 4,200 Volts |
Operating Temperature | -400C to 1800C |
UNSPSC Code | 31201503 |
