Solder Wave Masking Tapes
Description
RoHS and REACH Compliant
Custom sizes are available upon request.

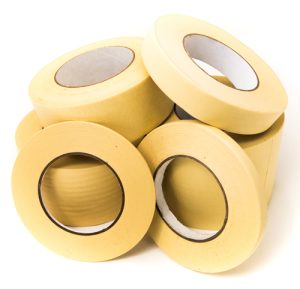

Solder Wave Masking Tapes are made from crepe paper with rubber adhesive that can be removed cleanly without leaving any residue. Total thickness is 7.6 mil. They are ideal for use in the wave soldering process to mask sensitive components and high temperature paint operations. They can withstand molten solder for 5-8 seconds at 500° F. These tapes may serve as high temperature masking tapes.
Custom sizes are available upon request.
Application Ideas
| Part Number | SWT series |
|---|---|
| Color | Beige |
| Total Thickness | 7.6 mil |
| Material Type | Crepe |
| Adhesive Type | Rubber |
| Adhesion to Steel | 26 oz./in. |
|---|---|
| Tensile Strength | 26 lbs./in. |
| Elongation | 9% |
| Temperature rating | 150°C (300°F) |
| UNSPSC Code | 31201503 |
